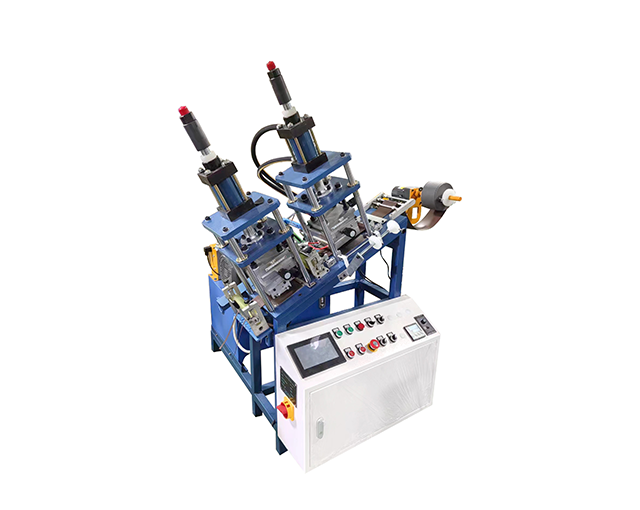

Embossing Machine for TPU Inflatable Toys

　　TPU (thermoplastic polyurethane) inflatable toys, such as pool floats, air mattresses, and children’s bounce houses, rely on embossing machines to achieve both functional integrity and aesthetic appeal. TPU is favored for its high elasticity, water resistance, and durability, but its embossing process requires precise control of temperature, pressure, and embossing time to ensure the final product’s quality.

　　Embossing machines for TPU inflatable toys typically use heated metal dies with intricate patterns, which are pressed against the TPU film under controlled conditions. The primary goals are to:

　　Create Sealed Inflatable Chambers: Embossing not only forms decorative patterns but also welds multiple layers of TPU together to create airtight compartments. For example, a pool float may have embossed grid patterns that both reinforce the structure and prevent uneven air distribution.

　　Enhance Mechanical Strength: Embossed textures increase the surface friction of TPU, making inflatable toys safer to use (e.g., preventing slipping) and more resistant to punctures. The embossing process can also align TPU’s molecular structure, improving tensile strength.

　　Add Decorative Elements: Custom embossing dies can imprint logos, cartoon characters, or geometric designs, enhancing the toy’s marketability. For children’s products, vibrant embossed patterns often incorporate glow-in-the-dark or reflective materials for added appeal.

　　Key technical considerations include:

　　Temperature Control: TPU has a melting point of ~180–220°C. The embossing machine’s heating plate must maintain uniform temperature to avoid over-melting (causing film thinning) or under-melting (inadequate sealing).

　　Pressure Regulation: Pressure levels typically range from 5–15 MPa, depending on the TPU thickness (0.2–1.5 mm). Higher pressure is needed for thicker films to ensure complete fusion between layers.

　　Cooling Speed: Rapid cooling after embossing preserves the pattern’s sharpness and prevents TPU from sticking to the die. Some machines use built-in air or water cooling systems.

　　For example, a popular inflatable unicorn float may undergo a two-step embossing process: first, sealing the body’s outline with a simple linear emboss, then applying a secondary emboss with scales and horn details using a textured die. The embossing machine’s precision ensures that air valves and seam joints are securely sealed, meeting safety standards for water use.
